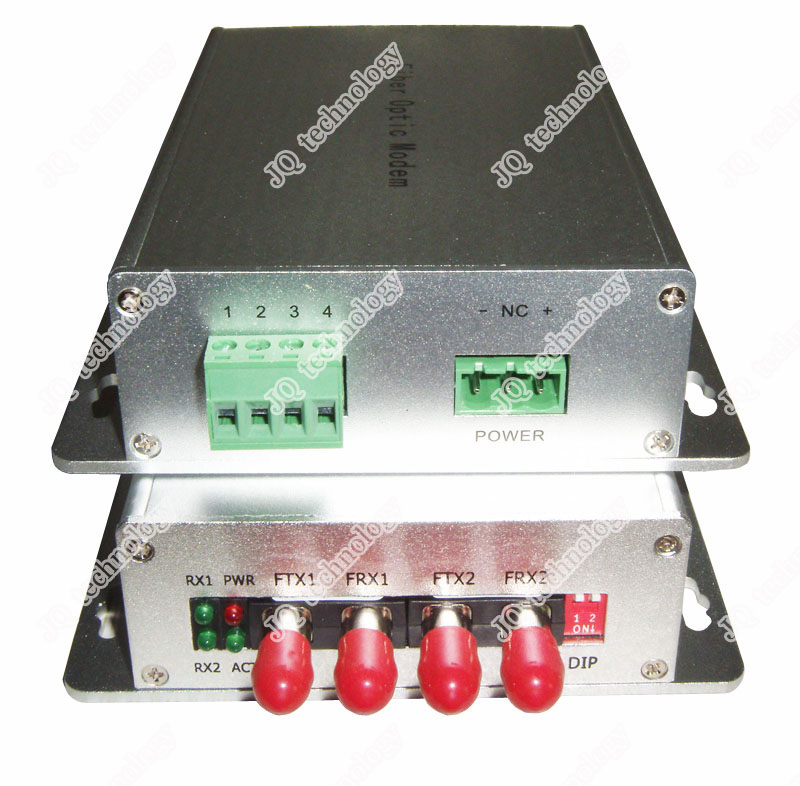

Lonworks Bus Fiber Optic Modem
Introduction
The Lonworks Bus Fiber Optic Modem realizes Lonworks device to the bus-type optic fiber connections on the interconnection. Single-mode fiber is used with effective communication distance of 0-25Km, As fiber is the transmission medium, safe, rapid and long distance communication is possible in abominable industrial environment, like thunder, hollow sea, electromagnetic interference. Cost in protecting facilities during thunder and hollow sea while using copper wire is saved.
Application field
** Water conservation projects
** Irrigation works
** Smart grid, smart building, smart city
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Home automation
** Intelligent building
** Supervisory Control and Data (SCADA)
Technical Specification
DATA |
|
Number of Channels |
1 |
Interface |
Lonworks |
Lonworks Working Rate |
78kbps |
Lonworks Distance |
0-2700m |
Connector Type |
Terminal |
OPTICAL |
|
Number of Fibers |
4 |
Wavelength |
850nm / 1310nm |
Fiber Type |
62.5/125μm(MM) / 9/125μm(SM) |
Distance |
0-2Km / 0-25Km |
Connector Type |
ST/PC |
GENERAL |
|
Operating Temperature |
-40- 70˚C / -40- +158ºF |
Operating Humidity |
0-95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
Input: 24VDC, 1.5A |
Enclosure Color |
Silver |
Dimensions (Wall mount, L× W×H) |
135mm×110mm×44mm |
Application topology

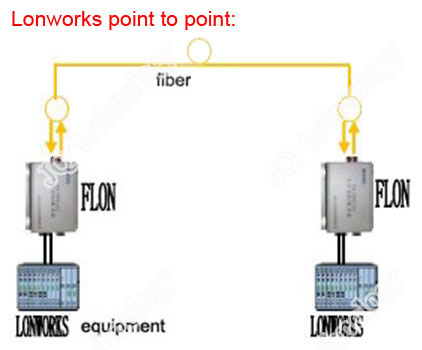

1) point to point Lonworks fiber converter:

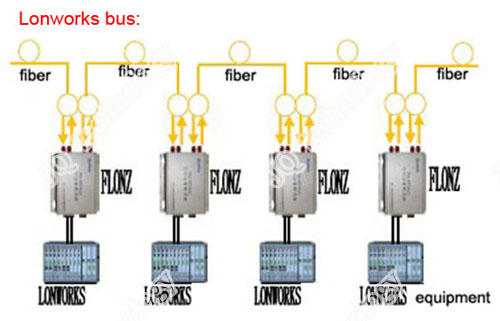

2) Lonworks bus fiber optic modem:

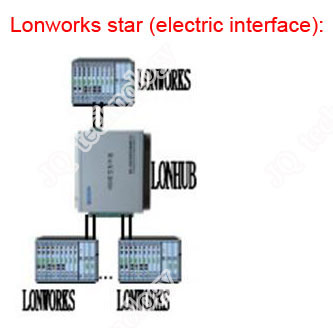

3) Lonworks star fiber converter:

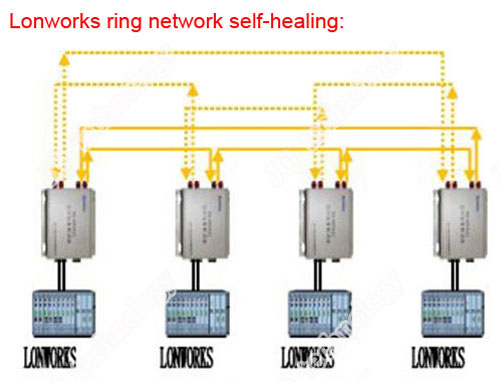

4) Lonworks ring fiber converter application:

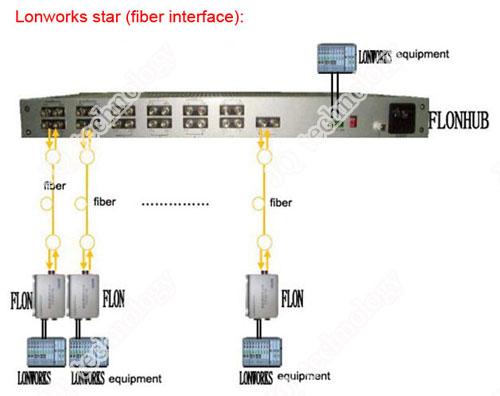

5) Lonworks star fiber converter application:

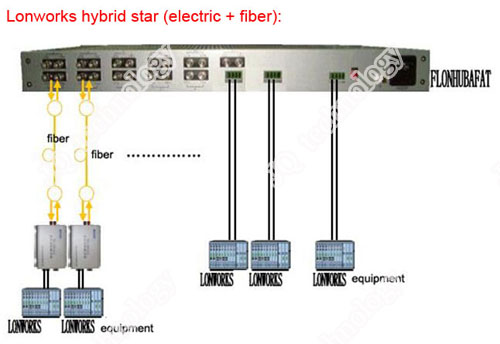

6) Lonworks hybrid star fiber converter application:
