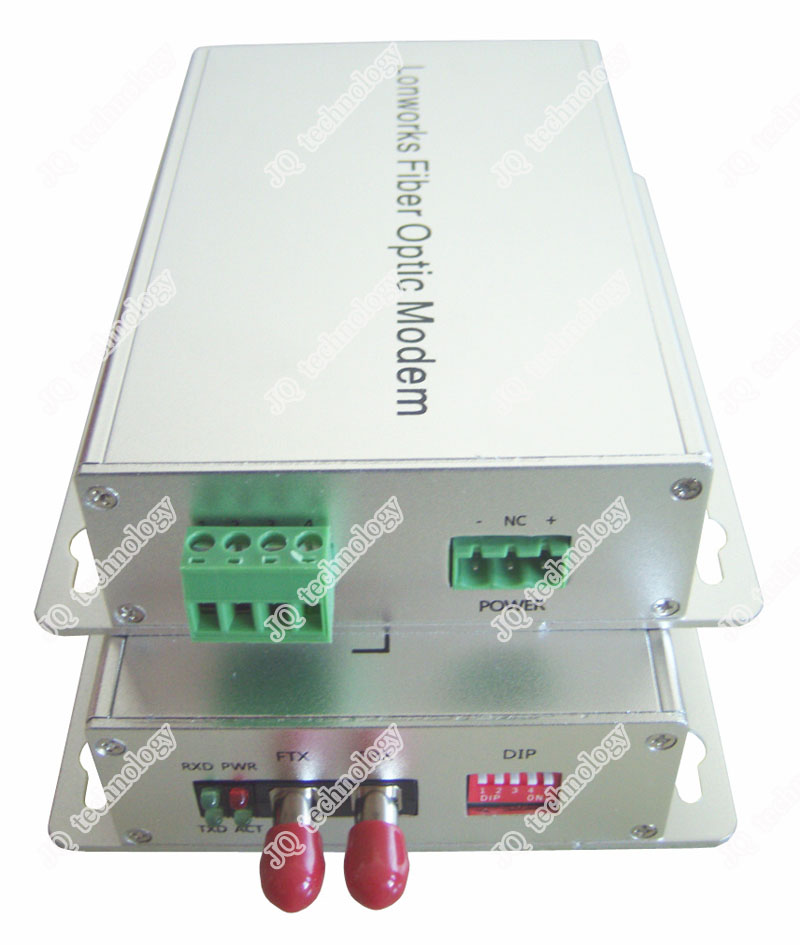

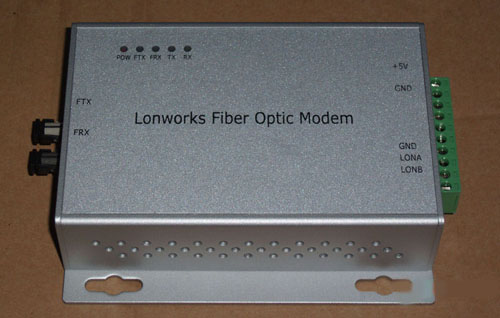

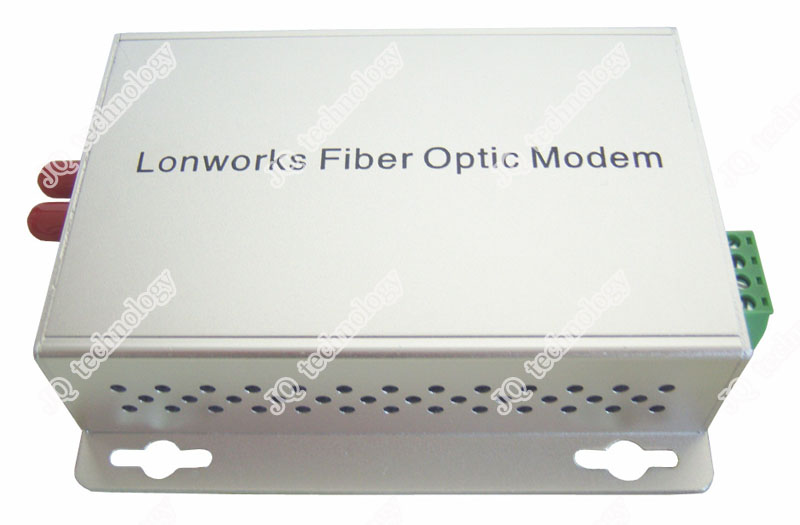

Point to point Lonworks fiber optic modem
Introduction
FLON series optical fiber modem connects LonWorks twisted pair copper networks to LonWorks fiber optic networks, or extends twisted pair networks over long distances or through harsh environments. The application of optical fiber avoids the burning equipment caused by different electric potential at different node and the disturbance caused by strong electromagnetic induction or high voltage, and can work in explosion-proof environment safely; moreover, it can save the cost on surge protective equipment which is necessary for transmission by copper.All components of Fiblon series have been tested strictly according to industrial standard, which is suitable for harsh industrial working conditions. It can be widely used in power distribution automation, industrial process control site, data acquisition and automation and surveillance system.
Relay mode is point-to-point or point to multipoint. Available transmission distance through multi mode fiber is within 4.5KM, through single mode fiber is within 45KM. It supports standard speed at 78Kbps or 1.25Mbps. Fiber port is ST.
Application
Industrial control, DCS, data acquisition system;
Highway toll collection system;
Process control and manufacturing;
Power acquisition and control system;
Interconnection between terminals of long-distance.
Parameters
Fiber port: ST/SC/FC
Wavelength: 850nm/1310nm
Fiber type: multimode 62.5/125um; single mode 9/125um
Lonworks interface: industrial connection terminal
Lonworks speed: 78Kbps /1.25Mbps
BER: 10e-9
Power: AC220V or DC -48V, +24V, 12V, +5V
Chasis/housing: wall mount
Operating temperature: -30℃～+70℃
Humidity: 10～90%，25℃
MBTF: 70,000 hours
Certifications
CE, FCC, UL-CUL
Ordering Information
Part No. |
Transmission Distance |
Speed |
Fiber type |
| FLONM01 | 0-2KM, dual fibers | 78Kbps | Multimode 850nm, 62.5/125um |
| FLONS01 | 0-20KM, dual fibers | 78Kbps | Single mode 9/125um |
