RS-232 Bus Fiber Optic Modem
Introduction
The RS-232 Bus Fiber Optic Modem realizes RS-232 device to the bus-type optic fiber connections on the interconnection. Single-mode fiber is used with effective communication distance of 0-25Km, As fiber is the transmission medium, safe, rapid and long distance communication is possible in abominable industrial environment, like thunder, hollow sea, electromagnetic interference. Cost in protecting facilities during thunder and hollow sea while using copper wire is saved.
Application field
** Water conservation projects
** Irrigation works
** Smart grid
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Supervisory Control and Data (SCADA)
Technical Specification
DATA |
|
Number of Channels |
1 |
Interface |
RS-232 |
RS-232 Working Rate |
0-115.2kbps |
RS-232 Distance |
0-15m |
Connector Type |
Terminal |
OPTICAL |
|
Number of Fibers |
4 |
Wavelength |
850nm/1310nm |
Fiber Type |
62.5/125μm(MM) / 9/125μm(SM) |
Distance |
0-2Km / 0-25Km |
Connector Type |
ST/PC |
GENERAL |
|
Operating Temperature |
-40-70˚C / -40- +158ºF |
Operating Humidity |
0- 95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
Input: 24VDC, 1.5A |
Enclosure Color |
Silver |
Dimensions (Wall mount, L× W×H) |
135mm×110mm×44mm |
Application topology
1) F232: point to point RS232 fiber converter:

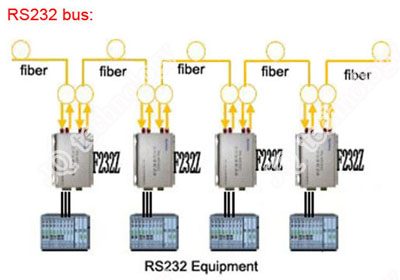

2) F232Z: RS232 bus fiber converter:

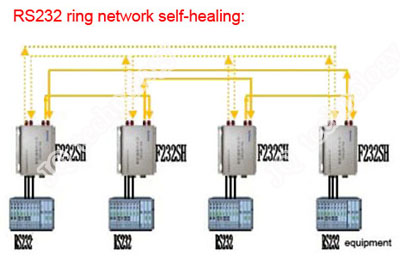

3) F232SH: RS232 ring network self-healing fiber optic modem:
4) 232HUB: RS232 star equipment with electric interface:

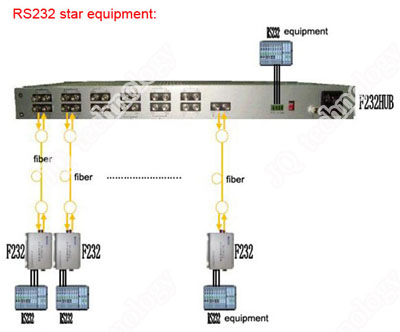

5) F232HUB: RS232 star fiber converter:

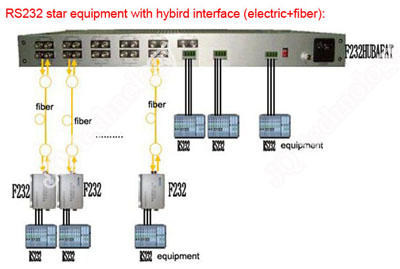

6) F232HUBAFAT: RS232 star equipment with hybrid interface (electric+fiber)
