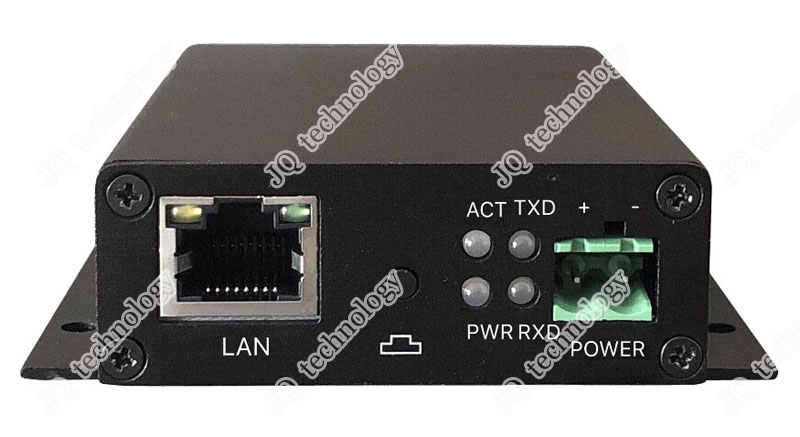

CANbus to Ethernet Protocol Converter
Introduction
The CAN-TCP/IP-PROC-2 can Transform and interconnect protocol between industrial Ethernet and Canbus.It integrates two-way Canbus interface internally and one EtherNet Interface and TCP/IP protocol stack. It support protocols include Ethernet, ARP, IP, ICMP, UDP and TCP. Under the UDP mode, each CAN port supports 3 target IP segments. Multiple users can manage one CAN device at the same time. Compatible with SOCKET working methods (TCP Server, TCP Client, UDP, etc) the upper computer communication software writes in accordance with the standard SOCKET rules. It can be used on multiple industrial bus sites. The CANbus can be directly connected to the LAN, or it can be connected with fiber optic trnsceiver in the absence of a network.
Application field
** Smart grid
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Supervisory Control and Data (SCADA)
Technical Specification
Ethernet |
|
Supporting standards |
IEEE802.3 10Base-T, 100Base-T |
Data Rate |
10/100Mbps auto-sensing, Full Duplex or Half Duplex |
Physical Interface |
RJ45, DCE interface |
Bit Error Rate |
10e-9 |
CANbus |
|
Number of interface |
2 |
Connectors |
Terminals |
Standard |
CAN1.0, CAN2.0 |
Data Rate |
0-1Mbps |
Extended Distance |
0-10Km |
GENERAL |
|
Operating Temperature |
-25 - 75˚C / -40 - +158ºF |
Relative Humidity |
0 - 95% non-condensing |
Input Voltage |
Input: 100~240VAC, 50/60Hz, 0.5A |
Mean Time Between Failure (MTBF) |
> 100,000hrs |
Housing |
Surface mount |
Enclosure Color |
Silver/black |
Dimensions (L×W×H) |
93mm×80mm×24mm |
