RS-485 Bus Fiber Optic Modem
Introduction
The RS-485 Bus Fiber Optic Modem realizes RS-485 device to the bus-type optic fiber connections on the interconnection. Single-mode fiber is used with effective communication distance of 0-25Km, supporting any rates from 0-1Mbps. As fiber is the transmission medium, safe, rapid and long distance communication is possible in abominable industrial environment, like thunder, hollow sea, electromagnetic interference. Cost in protecting facilities during thunder and hollow sea while using copper wire is saved.
Application field
** Water conservation projects
** Irrigation works
** Smart grid
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Supervisory Control and Data (SCADA)
Technical Specification
DATA |
|
Number of Channels |
1 |
Interface |
RS-485 |
RS-485 Working Rate |
DC0-1.2Mbps |
RS-485 Distance |
0-1200m |
Connector Type |
Terminal |
OPTICAL |
|
Number of Fibers |
4 |
Wavelength |
850nm |
Fiber Type |
62.5/125μm(MM) / 9/125μm(SM) |
Distance |
0-2Km / 0-25Km |
Connector Type |
ST/PC |
GENERAL |
|
Operating Temperature |
-40- 70˚C / -40- +158ºF |
Operating Humidity |
0- 95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
Input: 24VDC, 1.5A |
Enclosure Color |
Silver |
Dimensions (Wall mount, L× W×H) |
135mm×110mm×44mm |
Application topology

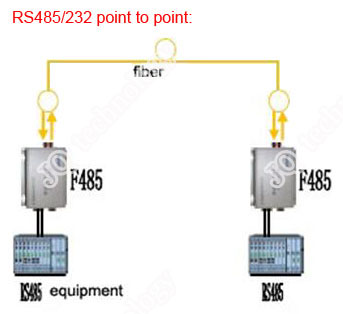

1) F485: RS485 point to point fiber converter

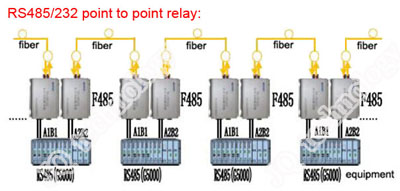

RS485 point to point relay fiber converter (taking G5000 for example)

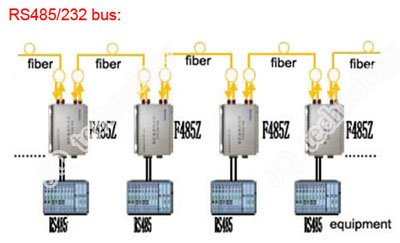

2) F485Z: RS485 bus fiber converter

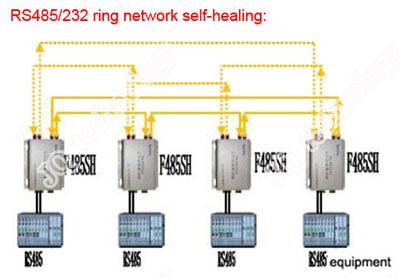

3) F485SH: RS485 ring network self-healing fiber converter
4) 485HUB: RS485 star equipment with electric interface

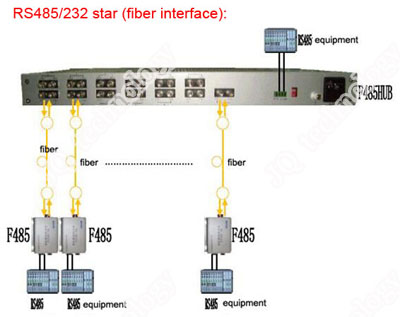

5) F485HUB: RS485 star fiber hub

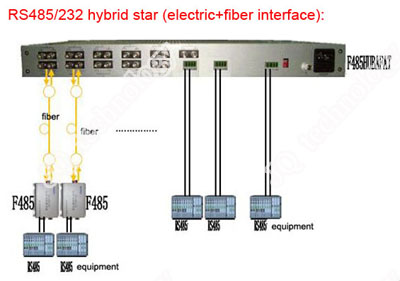

6) F485HUBAFAT: RS485 star equipment with hybrid interface (electric+fiber)
