CAN Bus Fiber Optic Modem
Introduction
The Can Bus Fiber Optic Modem realizes CAN device to the bus-type optic fiber connections on the interconnection. supporting any rates from 0-1Mbps. As fiber is the transmission medium, safe, rapid and long distance communication is possible in abominable industrial environment, like thunder, hollow sea, electromagnetic interference. Cost in protecting facilities during thunder and hollow sea while using copper wire is saved.
Application field
** Smart grid
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Supervisory Control and Data (SCADA)
Technical Specification
DATA |
|
Number of Channels |
1 |
Interface |
CAN1.0 CAN2.0 |
Can Working Rate |
DC0-1Mbps |
Can Distance |
0-10km |
Connector Type |
Terminal |
OPTICAL |
|
Number of Fibers |
4 |
Wavelength |
850nm / 1310nm |
Fiber Type |
62.5/125μm(MM) / 9/125μm(SM) |
Connector Type |
ST/PC |
GENERAL |
|
Operating Temperature |
-40- 70˚C / -40- +158ºF |
Operating Humidity |
0- 95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
Input: 24VDC, 1.5A |
Enclosure Color |
Silver |
Dimensions (Wall mount, L× W×H) |
135mm×110mm×44mm |
Application topology

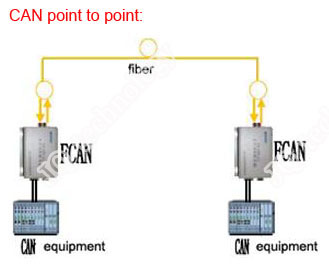

1) Point to point CAN fiber converter application:

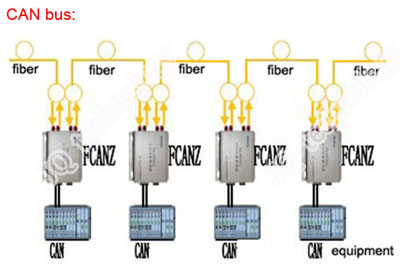

2) CAN bus fiber optic modem application:
3) CAN star electric application:

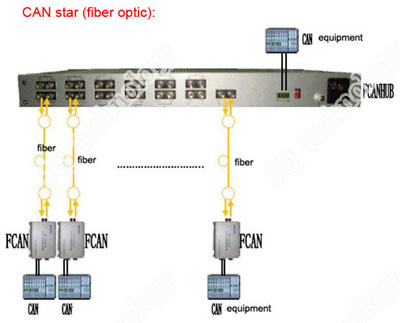

4) CAN star fiber optic modem application:

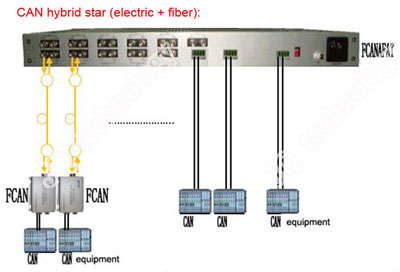

5) CAN hybrid star application:
