Point to point Lonworks fiber optic modem
Introduction

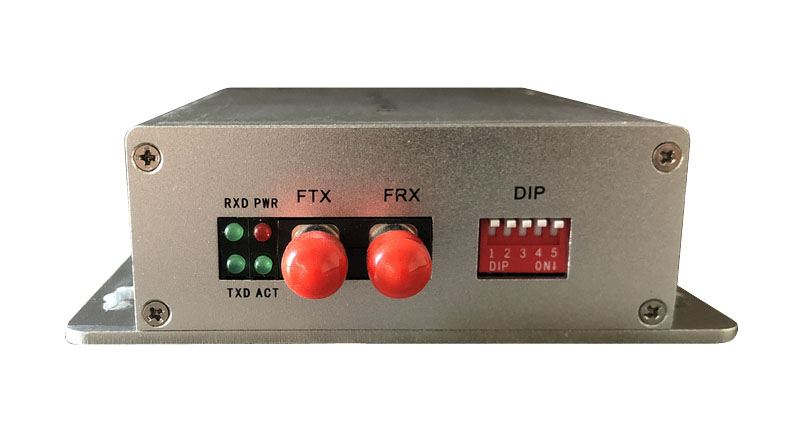

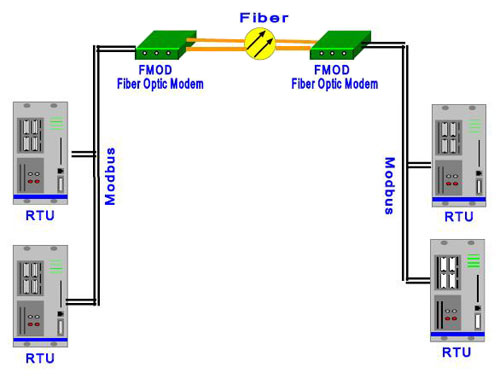

The FMOD Modbus Fiber Optic Modem is a master-slave and high performance Field bus Control System (FCS). Our FMOD Fiber Optic Modem uses the fiber cable as its transmission medium and utilizes Optical Fiber modulation/demodulation technology to changes the electric medium into a light medium transmission.
The Fiber Optic Modem product eliminates many of the disadvantages of copper cable. Examples of these disadvantages are EMI/RFI, ground loops (electrical isolation with fiber), high attenuation (high signal loss), short transmission distance between nodes of a system, and potential lightning damage.
Application
Industrial Controls
Intelligent Transportation Systems (ITS)
Industrial Networking
Supervisory Control and Data (SCADA)
Parameters
DATA
Connectors: Terminal
Interface: Modbus RTU/ Modbus ASCII
Data Rate: DC 0-1Mbps
Extended Distance: 0-1200m
OPTICAL
Number of Fibers: 2
Wavelength: 1310nm
Fiber Type: 9/125μm(SM)
Distance: 0-20KM
Connector Type: ST/PC
GENERAL
Operating Temperature: -40-70˚C / -40-+158ºF
Operating Humidity: 0-95% non-condensing
Mean Time Between Failure (MTBF): > 70,000hrs
Power Supply Adaptor: Input: 24VDC, 2A, 50/60Hz
Dimensions (H×L×W): 135mm×110mm×44mm
Certifications
CE, FCC
Ordering Information
Part No. |
Transmission Distance |
Speed |
Fiber type |
| FMODM01 | 0-2KM, dual fibers | 0-1Mbps | Multimode 1310nm, 50/125um, ST |
| FMODS01 | 0-20KM, dual fibers | 0-1Mbps | Single mode 1310nm, 9/125um, ST/FC/SC for option |
