CAN Fiber Optic Hub
Introduction
CAN concentrated fiber modem of FCANSHUB32 series realizes one-way CAN electrical interface to multiple-way optical interface and transfer. Single-mode optical fiber is used with effective communication distance of 0-10Km, supporting any rates from 0-1Mbps. As optical fiber is the transmission medium, safe, rapid and long distance communication is possible in abominable industrial environment, like thunder, hollow sea, electromagnetic interference. Cost in protecting facilities during thunder and hollow sea while using copper wire is saved.
Application field
** Smart grid
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Supervisory Control and Data (SCADA)
Technical Specification
DATA |
|
Connectors |
Terminal |
Interface |
CAN1.0 CAN2.0 |
Data Rate |
DC 0 -1Mbps |
Extended Distance |
0-10Km |
OPTICAL |
|
Number of Fibers |
64 |
Wavelength |
1310nm |
Fiber Type |
9/125um(SM) |
Connector Type |
ST/PC |
GENERAL |
|
Operating Temperature |
-40- 70˚C / -40- +158ºF |
Operating Humidity |
0- 95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
Input: 220VAC |
Dimensions |
2U standard 24 inches racks |

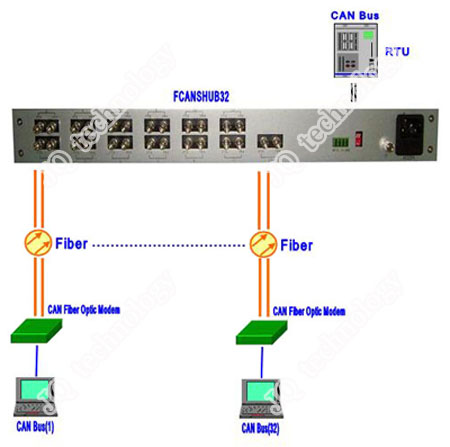

Application topology
