Lonworks solution
Introduction
Mainstream Lonworks fiber optic modem is with two optical fibers connection, we can customize dual fibers modem and single fiber modem, moreover, single mode modem and multimode modem are also available for customization, point to point connection, bus connection, electric to fiber star connection and fiber to fiber star connection are available.
The main type of our Lonworks fiber optic modem is wall-mounted type and miniature type, DIN-rail type is also available for customization. Wall-mounted type is default type.
Application field
** Water conservation projects
** Irrigation works
** Smart grid, smart building, smart city
** Fire control
** Industrial Controls
** Intelligent Transportation Systems (ITS)
** Industrial Networking
** Home automation
** Intelligent building
** Supervisory Control and Data (SCADA)
Technical Specification
OPTICAL |
|
Number of Fibers |
1 or 2 |
Wavelength |
1310/1550nm (SM); 820/1310/1550nm (MM) |
Fiber Type |
Single fiber, dual fibers |
9/125μm(SM); 62.5/125μm(MM) |
|
Distance |
0-20km (SM); 0-2Km (MM) |
Connector Type |
ST/FC/SC PC |
DATA |
|
Number of Channels |
1 |
Interface |
Lonworks |
Baud Rate |
78Kbps |
Connector Type |
Terminal (LONA, LONB) |
GENERAL |
|
Operating Temperature |
-40 -70˚C / -40-+158ºF |
Operating Humidity |
0-95% non-condensing |
Mean Time Between Failure (MTBF) |
> 70,000hrs |
Power Supply Adaptor |
AC100-240V 1.8A 50-60Hz |
Power connector |
Terminal |
Enclosure Color |
Silver |
Dimensions (L× W×H) |
Wall mount: 135mm×116mm×36.4mm |
Miniature: 69.5 mm×75.5 mm×24 mm |
|
DIN-rail: 72mm×59mm×44mm |
|
Detailed application of Lonworks fiber optic modem:

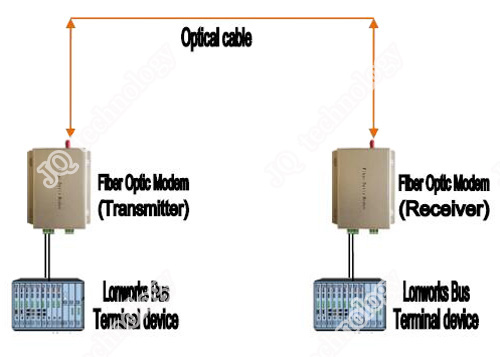

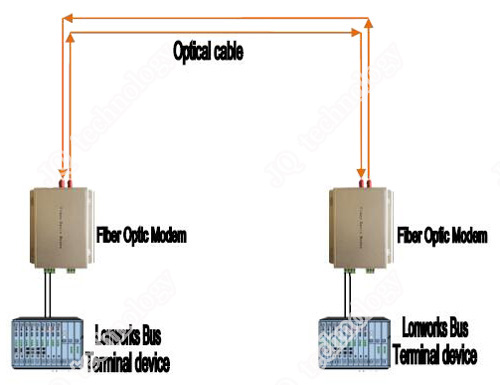

1. Point to point connection:

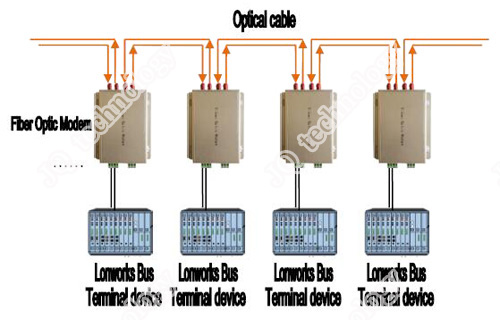

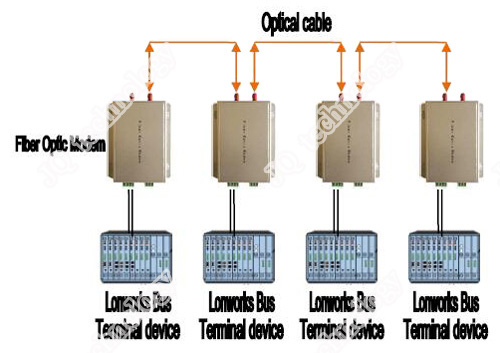

2. Bus connection:

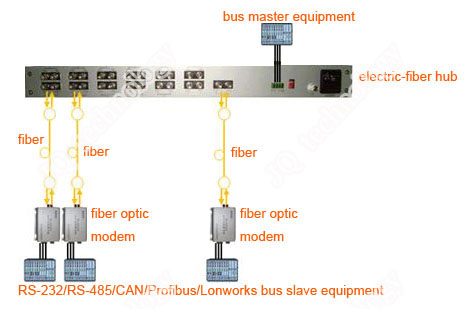

3. Electric to fiber star connection:

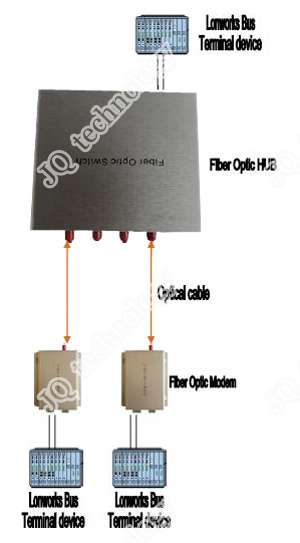

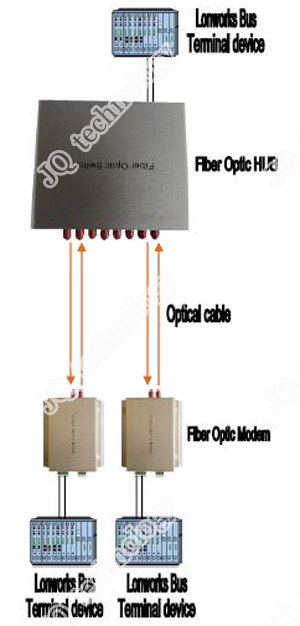

4. Fiber to fiber star connection:

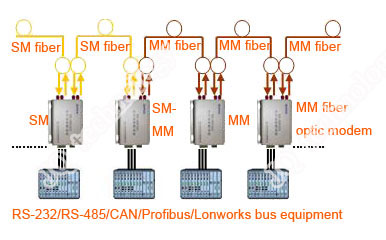

5. Multi mode to single mode convertion and connection:

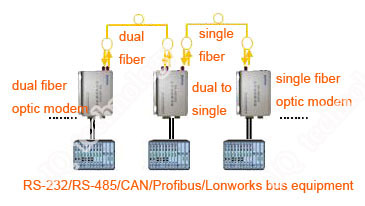

6. Dual fiber to single fiber convertion and connection.
This is our main strength.
