Description of goods
Full gigabit 6-port industrial PoE Switch model No. 5124
Introduction
5124 is 4 port poe switch, 4*10/100/1000Mbps PoE port with 2*1000Base-FX Fast SFP Port. GWTP52114 can carry power to IP camera, wireless AP, wireless bridge, IP phone.
5124 is a new generation Industrial Media Converter with 4*10/100/1000Base-TX POE Port and2*1000Base-FX Fast SFP Port that provide stable and reliable Ethernet transmission offered by GWT, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The Industrial Media Converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
5124 4 port poe switch support IEEE802.3af/at , auto identification power device, so don’t worry it will destroy the private standard PoE or non-PoE device. It can also operate either at standard operating temperature range -40 to 75℃ housed in rugged DIN rail or wall mountable 1P40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Feature
●4x10/100/1000Base-TX PoE port, 2x1000Base-FX SFP
●Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
●Support 10Kbytes giant frame, compatible with various extension protocol
●4K MAC address table
●Support IEEE802.3az energy efficient Ethernet technology
●Support lPv6 Protocol
●Electric 8KV surge protection, easy to use in outdoor environment
●Complete status indicator, working state at a glance
●Power input polarity protection design, no worry about wrong operation
●Metal case, no fan design
●Installation method: DIN rail /Wall mounting
●The maximum output power of single-port POE is 30W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
Spetification
Physical Port |
|
Fixed Port |
4*10/100/1000Base-T PoE ports (Data/Power) |
2*1000Base-Fx uplink SFP slot ports (Data) |
|
2 set of V+, V- redundant DC power interface (6P Phoenix terminal) |
|
Parameters |
|
Packet Buffer |
2Mbits |
Packet Length |
10Kbytes |
MAC Address Table |
4K |
Transmission Mode |
Store and Forward |
Exchange Property |
Delay time: < 7ps |
Backplane bandwidth: 20Gbps; Packet forwarding rate: 8.928Mpps |
|
Ethernet Standards |
IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/100BASE-FX |
|
IEEE 802.3z Gigabit SX/LX |
|
IEEE 802.3ab Gigabit 1000T |
|
IEEE 802.3x flow control and back pressure |
|
IEEE 802.3af Power over Ethernet |
|
IEEE 802.3at Power over Ethernet Plus |
|
PoE |
|
PoE Port |
Port 1 to 4 IEEE802.3af/at @ POE |
Power Supply Pin |
Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-) |
Max Power Per Port |
Max. PoE output power budget 30W |
Power Supply |
No, optional 48V/60W or 48V/120W industrial power supply |
LED Indicator |
|
Power |
Connect-always |
RJ45 |
Link/Act：connect-always；data exchange-twinkle |
Fiber |
Link/Act：connect-always；data exchange-twinkle |
Power Information |
|
Power Access Mode |
Industrial dual power input，Phoenix terminal， DC Seat |
Redundant Power Input |
DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V |
Overload Protection |
Yes |
Anti-reverse protection |
Support |
Power Consumption |
afStandby:<4W;Full load:<60W; |
Physical Property |
|
Protection Grade |
IP40 aluminum case |
Cooling Mode |
Natural cooling, no fan design |
Dimensions |
138mm×106mm×41mm (LxWxH) |
Installation Mode |
DIN rail/wall-mountable |
Weight |
650g (No POE:400g) |
Working Environment |
|
Operating Temperature |
-40°C~75°C |
Operating Humidity |
5%~90% non-condensing |
Storage Temperature |
-40°C~85°C |
Warranty |
|
MTBF |
500,000 hours |
Defects Liability Period |
5 year warranty, lifetime technical support |
Certification Standard |
|
EMC |
FCC Part15 Class A |
CE-EMC/LVD |
|
RoHS |
|
EN61000-4-2 (ESD), EN61000-4-3 (RS) |
|
EN6100044 (EFT), EN6100045 (Surge) |
|
EN61000^1-6 (CS), EN61000-4-8 |
|
EN61000-4-11 |
|
Vibration |
IEC60068-2-6 |
-40~75°C High and Low Temperature Test |
|
IP40 Protection Test |
|
High effective PoE+ Solution especially suitable for security monitoring |
|
AI PoE |
|
Automatic self checking, reboot the device while find it fake dead |
|
Three POE Mode |
|
Disabled , Enable POE , Enabled POE+.Provide both 15.4-watt IEEE 802.3af devices and 30-watt IEEE 802.3at devices without power-socket restriction to provide high-speed transmissions at the same time. |
|
PoE Budget |
|
Up to 120W, with 1M Buffer Differ your Video Surveillance |
|

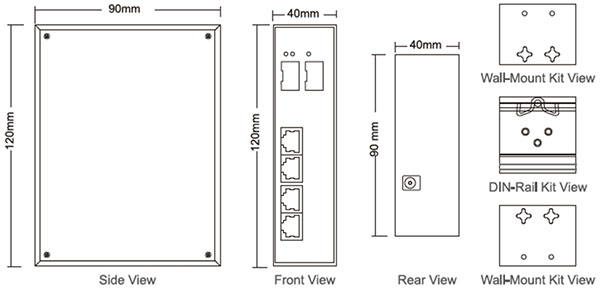

Dimension

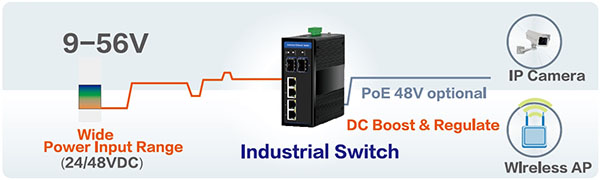

Application
Ordering information
Model Number |
Port Description |
5124 |
4x10/100/1000Base-T POE ports (Data/Power)+2 x 1000Base-Fx uplink SFP slot ports (Data), Industrial Ethernet Switch |
