RS232/485/422 to fiber media converter
3 in 1 high speed serial to fiber media converter model No. RS8322
Description of goods

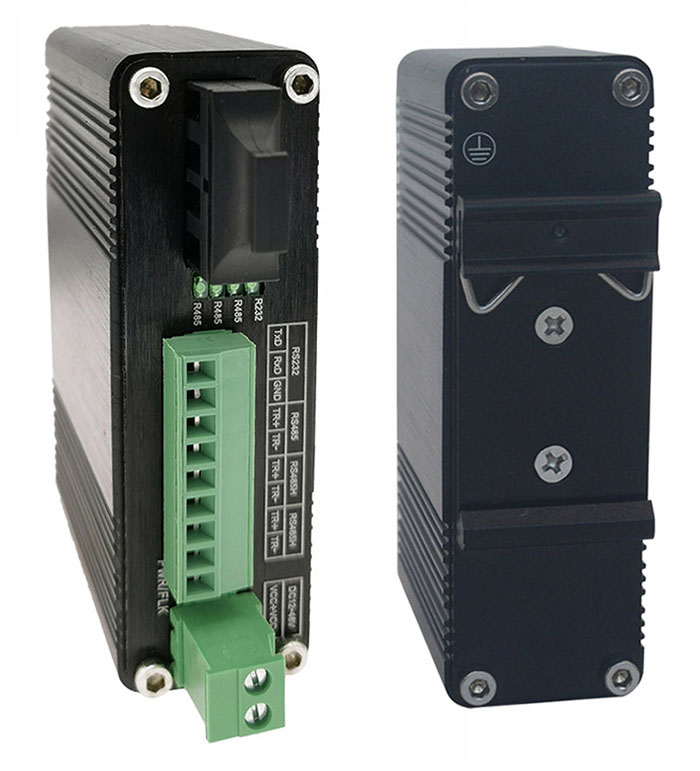

3 in 1 high speed serial to fiber media converter model No. RS8322
Introduction
RS8322 series is an industrial grade RS232/RS485/RS422 to fiber
optic converter which converts a standard RS232/RS485/RS422 signal to fiber optic link
to extend the signal up to 2Km over multimode fiber or 100Km over single mode fiber.
The use of optical fiber solves the problems of electromagnetic interference, ground ring
interference and lightning damage. It greatly improves the reliability, security and
confidentiality of data communication, and can be widely used in various industrial control,
process control, Stage Lighting Control and traffic control occasions.
Feature
► Plug-and-play, hot pluggable
► Extends Bi-directional RS-232/RS-485/RS-422 up to 2Km on MMF, 100Km on SMF
► EIA /TIA standard RS232/485/422, 0~2Mbps rate
► Serial data is fully transparent, baud rate is self-adaptive, no setting is required
► The high speed serial data can used for DMX512 communication in Stage Lighting Control
► Support DIN-Rail & Wall-mount installation.
► Built-in surge and static protection
► Diagnostic and unit indicator LEDs
► Environmentally Hardened -40°C to 75°C (-40°F to 176°F) operating temperature
Model |
RS8322 Series |
Fiber Connector |
SC standard, ST/FC/LC optional |
Fiber Distance |
50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80/100Km |
Serial Interface |
Industrial Terminal |
Signal Ports |
1Ch RS232 - 1Mbps |
Standard |
EIA /TIA RS232/485/422 |
Serial Distance |
RS232: 15 meters, RS485/422: 1000 meters |
Rate |
Max 2Mbps |
RS-232 |
TXD, RXD, GND - Bi-directional |
RS-485 |
D+, D-, GND - Bi-directional |
Power Supply |
DC12~48V |
Power rate |
<5W |
Static protection |
15KV electric static discharge (ESD) protection |
Surge protection |
1500W/sec surge protection |
Operation Temperature |
-25°C to +75°C |
Storage Temperature |
-40°C to +85°C |
Storage Humidity |
5%~90% non-condescending |
Dimensions |
95(L)*70(W)*29(H) mm |
Weight |
0.25kg/pcs |

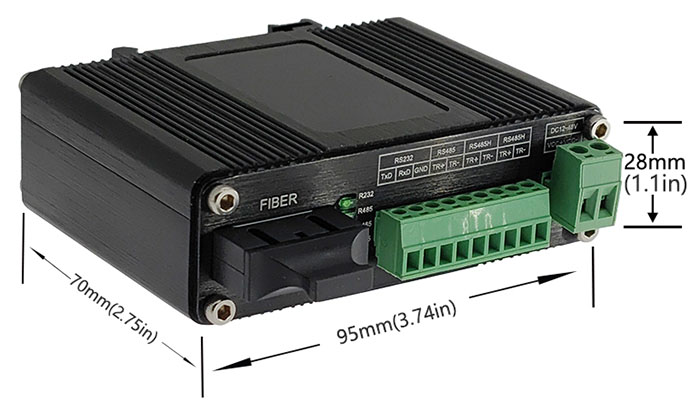

Dimension
DATA TERMINAL BLOCK |
DATA TERMINAL BLOCK |
1 |
High Speed RS422 - / High Speed RS485 - |
2 |
High Speed RS422 + / High Speed RS485 + |
3 |
High Speed RS422 - / High Speed RS485 - |
4 |
High Speed RS422 + / High Speed RS485 + |
5 |
RS485 - |
6 |
RS485 + |
7 |
GROUND |
8 |
RS232 RECEIVE |
9 |
RS232 TRANSMIT |
Ordering information
Model |
Description |
RS8322-SFP |
Industrial Serial RS232/RS485/RS422 with SFP port |
RS8322-ST-MM-850 |
Industrial Serial RS232/RS485/RS422 , ST MM 850nm, 2Km |
RS8322-ST-MM-1310 |
Industrial Serial RS232/RS485/RS422 , ST MM 1310nm, 2Km |
RS8322-SC-20 |
Industrial Serial RS232/RS485/RS422 , SC SM 1310nm, 20km |
Mounting Options |
Default DIN-Rail Bracket installed, Wall Mount Bracket is included |
Power Options |
Power Supply is to be purchased separately |
