1110S (10/100/1000M, single fiber)
1110S (10/100/1000M, single fiber)
Description of goods

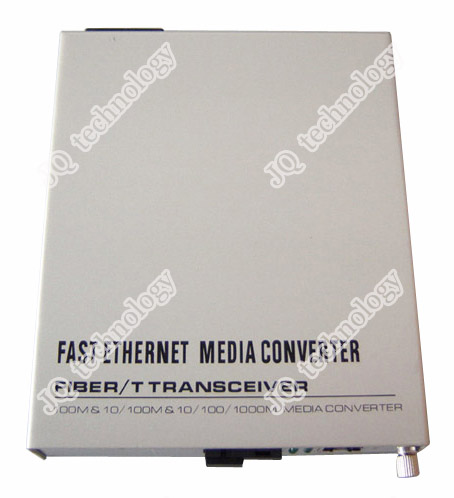

10/100/1000 Base Tx to 1000Base Fx WDM media converter Model No. 1110S
Applications
1110S Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-Tx segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Features
◆Auto Learning,Auto Updating,Auto Stocking And Auto Rransmitting
◆Buffer Storage Band Dimensions is 256KB、Directory Meter Dimensions is 4KB
◆Ethernet 10Base-T Or 100Base-TX To 100Base-FX Optical Medium
◆Providing Hot Plug-draw Performance
◆Using Particular Switch Chip Design With 1M SSRAM Buffer,2K MAC Address List
◆Full Duplex And Semiduplex Is Available With Auto Negotiation
◆Have One RJ-45 Connector And One Fiber Connector
◆Providing TX1000Mbps、100Mbps、10Mbps Negotiation，FX Working Rate 1000Mbps
◆Good Optical FX Characteristic And TX Characteristic To Ensure
◆Providing 10Mbps And 100Mbps Auto Negotiation(reaching to 200Mbps if duplex)
◆Providing Long-distance TX And TX Characteristic To Ensure Stability Of Data Transmitting, Long Life Span
◆Providing RJ-45 NIC And HUB,Using NIC To Connect With Computer
◆Working Time Without Any Rrouble Is More Than 50 Thousand
Specifications
Protocol: IEEE802.3 IEEE802.3u IEEE802.3x
Fiber port: SC/ST/FC
Port: RJ-45 Port
Network Cable: 2pairs of category 5 UTP (Max:100m)
Fiber optic cable: SMF：8.3/125,8.7/125,9/125,10/125μm (20/40/80/120Km)
Dimensions(WxDxH):
156x128x32mm (internal power)
94*71*26mm (external power)
Input Voltage: AC100V-AC240V and DC-48V is optional ( Internal power )
Operational Temperature: 0 ℃ ~70 ℃
Store Temperature: -40 ℃ ~80 ℃
Humidity: 5%~95% no coagulation
S/N |
Part Number |
Specification |
Remark |
1 |
1110S-SCM-25 | 10/100/1000M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 25km span,internal power, 1310/1550nm | power cord attached |
2 |
1110S-SCM-50 | 10/100/1000M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 50km span,internal power, 1310/1550nm | power cord attached |
3 |
1110S-PCI-SCM-25 | 10/100/1000M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 25km span, internal power, 1310/1550nm | in rack |
4 |
1110SE-SCM-25 | 10/100/1000M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 25km span,external power, 1310/1550nm | power adaptor attached |
5 |
1110SE-SCM-50 | 10/100/1000M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 50km span,external power, 1310/1550nm | power adaptor attached |
