10100S(10/100M, single fiber)
Description of goods

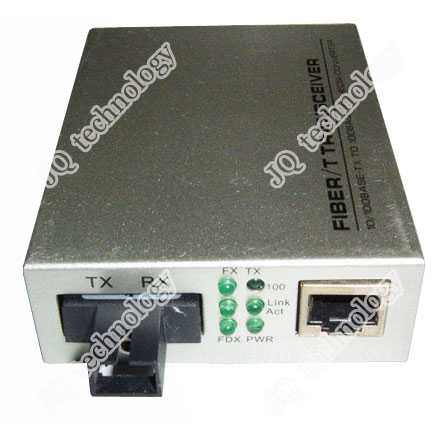

10/100Base TX + 100Base FX WDM media converter Model No. 10100S
Applications
10100S Media Converter is 10/100Mbps fast Ethernet converter. The converter mediates between a 10/100Base-Tx segment and a 100Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Features
◆Auto Learning,Auto Updating,Auto Stocking And Auto Transmitting
◆Ethernet 10Base-T Or 100Base-TX To 100Base-FX Optical Medium
◆Providing Hot Plug-draw Performance
◆Using Particular Switch Chip Design With 1M SSRAM Buffer,2K MAC Address List
◆Full Duplex And Semiduplex Is Available With Auto Negotiation
◆Have Two RJ-45 Connector And One Fiber Connector
◆Providing 10Mbps And 100Mbps Auto Negotiation(reaching to 200Mbps if duplex)
◆Good Optical FX Characteristic And TX Characteristic To Ensure
◆Providing Long-distance TX And TX Characteristic To Ensure Stability Of Data Transmitting, Long Lifespan
◆Providing RJ-45 NIC And HUB,Using NIC To Connect With Computer
◆Working Time Without Any Rrouble Is More Than 50 Thousand hours
Protocol: IEEE802.3 IEEE802.3u IEEE802.3x
Fiber Type: SC/ST/FC
Port: one or two RJ45 Port
Network Cable: 2pairs of category 5 UTP (Max:100m)
Fiber optic cable: SMF：8.3/125,8.7/125,9/125,10/125μm (20/40/80/120Km)
Dimensions(WxDxH):
95x71x26mm (1 RJ45 port) ; 82*98*26mm (2 RJ45 port)
Box Dimensions(WxDxH): 212*238*55mm (2pcs/box)
Weight:
0.83kgs/box (1 RJ45 port) ; 0.9kgs/box (2 RJ45 port)
Input Voltage: AC100V-AC240V and DC-48V is optional ( Internal power )
Operational Temperature: 0 ℃ ~70 ℃
Store Temperature: -40 ℃ ~80 ℃
Humidity: 5%~95% no coagulation
Ordering information
S/N |
Part Number |
Specification |
Remark |
1 |
10100S-SCM-25 | 10/100M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 25km span,external power, 1310/1550nm | power adaptor attached |
2 |
10100S-SCM-40 | 10/100M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 40km span,external power, 1310/1550nm | power adaptor attached |
3 |
10100S-SCM-60 | 10/100M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 60km span,external power, 1310/1550nm | power adaptor attached |
4 |
10100S2-SCM-25 | 10/100M, single mode, single fiber, 2 RJ45 port, SC fiber port, within 25km span,external power, 1310/1550nm | power adaptor attached |
5 |
10100S2-SCM-40 | 10/100M, single mode, single fiber, 2 RJ45 port, SC fiber port, within 40km span,external power, 1310/1550nm | power adaptor attached |
6 |
10100S2-SCM-60 | 10/100M, single mode, single fiber, 2 RJ45 port, SC fiber port, within 60km span,external power, 1310/1550nm | power adaptor attached |
7 |

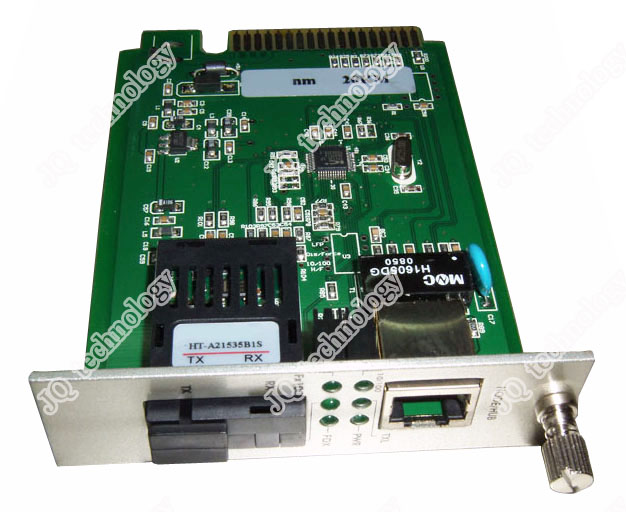

10100S-PCI-SCM-25 | 10/100M, single mode, single fiber, 1 RJ45 port, SC fiber port, within 25km span, internal power, 1310/1550nm | in rack (chassis) |
