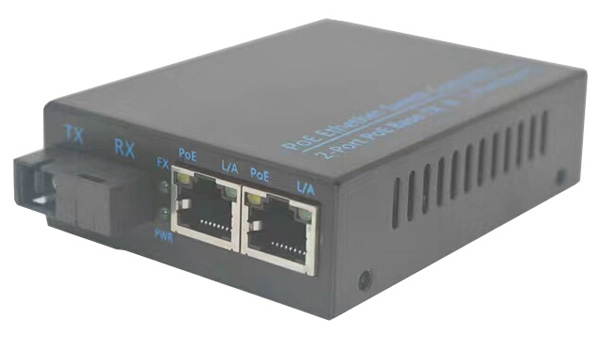

POE+ PSE gigabit media converter, 2TP+1FX
 |
|
 |
 |
The POE++ media converter is a 2-port power sourcing equipment (PSE) controller designed for use in IEEE802.3bt Type 3 and 4 compliant Power over Ethernet(PoE) systems.It is designed to power compliant 802.3af, 802.3at, and 802.3bt PDs. It can negotiate PD delivered power up to 71.3W.
Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical Cabling.
This converter transmit and receive 10/100/1000 Mbps data over a multi mode optical fiber, extending the Ethernet transmission distance to 550 meters.
Specification
Ethernet |
|
Supporting standards |
IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt |
Number of Ethernet |
2 |
Data Rate |
10/100/1000Mbps auto-sensing, Full Duplex or Half Duplex |

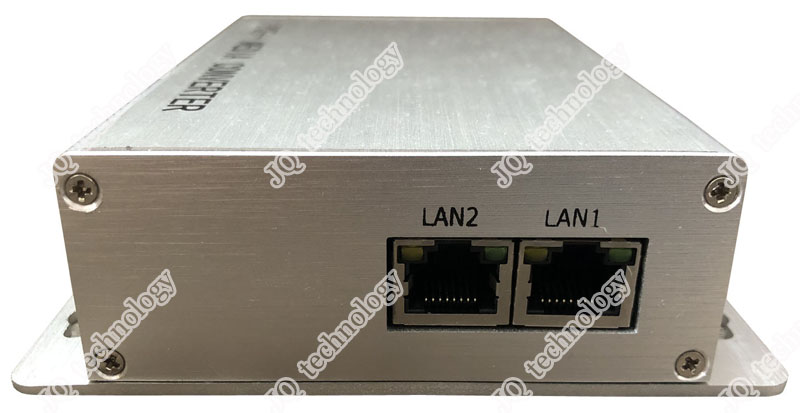

Physical Interface |
RJ45, DCE interface |
Bit Error Rate |
10e-9 |
OPTICAL |
|
Number of Fibers |
2 |
Wavelength |
850nm |
Fiber Type |
Multimode optical fiber |
Distance |
550m |

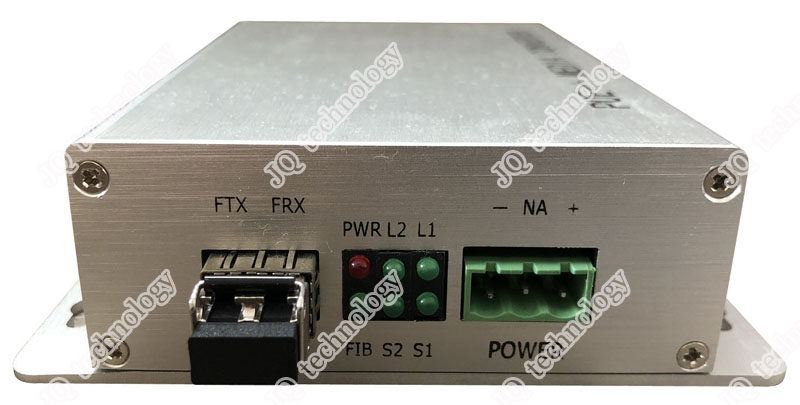

Connector Type |
LC/SFP |
GENERAL |
|
Operating Temperature |
-40 ~ 70˚C / -40 ~ +158ºF |
Relative Humidity |
0 ~ 95% non-condensing |
Mean Time Between Failure (MTBF) |
> 100,000hrs |
Input Voltage |
Input: 100~240VAC, 50/60Hz, 3.0A |
Dimensions (L×W×H) |
135mm×116mm×36mm |
