10/100Base 4-port industrial PoE Switch model No. 5014

5014


Description of goods
10/100Base 4-port industrial PoE Switch model No. 5014

Introduction
5014 is a new generation Industrial Media Converter with 4*10/100Base-TX POE Port and 1*100Base-FX Fast SFP Port that provide stable and reliable Ethernet transmission offered by GWT, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The Industrial Media Converter complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain. GWTP5014 can carry power to IP camera, wireless AP, wireless bridge, IP phone.

5014 4 port POE switch support IEEE802.3af/at , auto identification power device, so don’t worry it will destroy the private standard PoE or non-PoE device. It can also operate either at standard operating temperature range -40 to 75C housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for military and utility market applications where environmental conditions exceed commercial product specifications.


Features
● 4x10/100Base-TX PoE port, 1x100Base-FX SFP
● Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
● Support 2048bytes giant frame, compatible with various extension protocol
● 4K MAC address table
● Support IEEE802.3az energy efficient Ethernet technology
● Support lPv6 Protocol
● Electric 4KV surge protection, easy to use in outdoor environment
● Complete status indicator, working state at a glance
● Power input polarity protection design, no worry about wrong operation
● Metal case, no fan design
● Installation method: DIN rail /Wall mounting
●The maximum output power of single-port POE is 30W, and the backwards compatibility IEEE802.3af/at PoE power supply standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

Specifications

Specification

Physical Port

Fixed Port

4*10/100Base-T PoE ports (Data/Power)

1*100Base-Fx uplink SFP slot ports (Data)

2 set of V+, V- redundant DC power interface (6P Phoenix terminal)

Parameters

Packet Buffer

512K

Packet Length

2048Bytes

MAC Address Table

4K

Transmission Mode

Store and Forward

Exchange Property

Delay time: < 7ps

Backplane bandwidth: 1Gbps; Packet forwarding rate: 0.2976Mpps

Ethernet Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

PoE

PoE Port

Port 1 to 4 IEEE802.3af/at @ POE

Power Supply Pin

Defaul :1/2 (+), 3/6 (-),optional:4/5 (+), 7/8 (-)

Max Power Per Port

Max. PoE output power budget 30W

Power Supply

No, optional 48V/60W or 48V/120W industrial power supply

LED Indicator

Power

Connect-always

RJ45

Link/Act:connect-always;data exchange-twinkle

Fiber

Link/Act:connect-always;data exchange-twinkle

Power Information

Power Access Mode

Industrial dual power input,Phoenix terminal, DC Seat

Redundant Power Input

DC INPUT: 48V-56V, non-PoE DC INPUT: 9-56V

Overload Protection

Yes

Anti-reverse protection

Support

Power Consumption

afStandby:<4W;Full load:<60W;
at Standby:<5W;Full load:<120W

Physical Property

Protection Grade

IP40 aluminum case

Cooling Mode

Natural cooling, no fan design

Dimensions

120mm×90mm×35mm(LxWxH)

Installation Mode

DIN rail/wall-mountable

Weight

450g(No POE:400g)

Working Environment

Operating Temperature

-40°C~75°C

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40°C~85°C

Warranty

MTBF

500,000 hours

Defects Liability Period

5 year warranty, lifetime technical support

Certification Standard

EMC

FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11

Vibration

IEC60068-2-6

-40~75°C High and Low Temperature Test

IP40 Protection Test

High effective PoE+ Solution especially suitable for security monitoring

AI PoE

Automatic self checking, reboot the device while find it fake dead

Three POE Mode

Disabled , Enable POE , Enabled POE+. Provide both 15.4-watt IEEE 802.3af devices and 30-watt IEEE 802.3at devices without power-socket restriction to provide high-speed transmissions at the same time.

PoE Budget

Up to 120W, with 1M Buffer Differ your Video Surveillance



Dimension

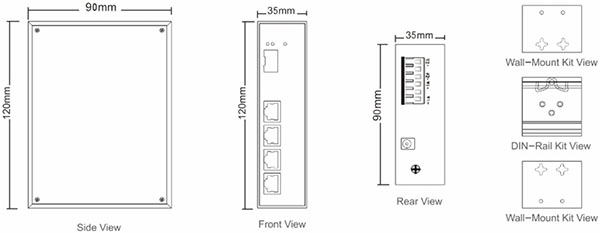

5014-size

Application

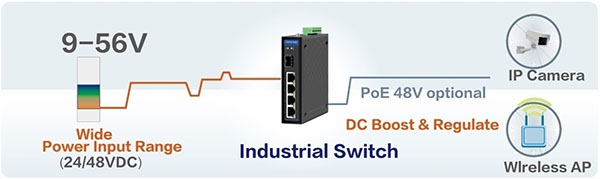

5014-application


Ordering information

Model Number

Port Description

5014

4 x 10/100Base-T PoE ports (Data/Power)  + 1 x 100Base-Fx uplink SFP slot ports (Data), Industrial Ethernet Switch

5114

4 x 10/100/1000Base-T POE ports (Data/Power) +1 x 1000Base-Fx uplink SFP slot ports (Data), Industrial Ethernet Switch
