Industrial ethernet switch model No. 4014/4114

40144114


Description of goods
four port SFP base industrial ethernet switch model No. 4014

Introduction
4014 is a new generation Ethernet Industrial Switch with 4-Port 10/100Base-TX and 1-Port 100Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by GWT, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users The Ethernet Industrial Switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

4014 can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75℃.Housed in rugged DIN rail or wall mountable lP40 enclosures. these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (lTS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Features
*4x10/100Base-TX,1x100Base-FXSFP
*Support Auto-MDIX, and full/half duplex self-negotiation mode
*Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
*Support 2048bytes giant frame, compatible with various extension protocol
*4K MAC address table
*Support IEEE802.3az energy efficient Ethernet technology
*Support IPv6 Protocol
*Electric 4KV surge protection, easy to use in outdoor environment
*Complete status indicator, working state at a glance
*Power input polarity protection design, no worry about wrong operation
*Metal case, no fan design
*Installation method: DIN rail /Wall mounting

Specifications

Physical Port

RJ45 Port and Speed

4x10/100Base-TX

Fiber Port and Speed

1x100Base-FX SFP

Parameters

Ethernet Standards

IEEE802.3   IEEE802.3u
IEEE802.3x IEEE802.3az
IEEE802.1X

Packet Buffer

512K

MaximumPacket Length

Up to 2048Bytes

MAC Address Table

4K

Transmission Mode

Store and Forward(full/half duplex mode)

Exchange Property

Delay time:<7us
Backplane bandwidth:1Gbps;Packet forwardingrate:02976Mpps

LED Indicator

Power

Connect-always

RJ45

Link/Act:connect-always;data exchange-twinkle

Fiber

Link/Act:connect-always;data exchange-twinkle

Power Information

Power Access Mode

Phoenix terminal,DC seat

Redundant Power Input

DC 9-56V

Overload Protection

Yes

Power Reverse

Support

Power Consumption

Full-load<5W

Physical Property

Protection Grade

IP40 aluminum case

Cooling Mode

Natural cooling, no fan design

Dimensions

120mmx90mmx35mm

Installation Mode

DIN rail/wall-mountable

Weight

300g

Working Environment

Operating Temperature

-40℃~75℃

Operating Humidity

5%~90% non-condensing

Storage Temperature

-40℃~85℃

Warranty

MTBF

500,000 hours

Defects Liability Period

3 years warranty, lifetime technical support

Certification Standard

EMC

FCC Part15 Class A
CE-EMC/LVD
RoHS
EN61000-4-2(ESD),EN61000-4-3(RS)
EN61000-4-4(EFT),EN61000-4-5(Surge)
EN61000-4-6(CS),EN61000-4-8
EN61000-4-11

Vibration

IEC60068-2-6
-40~75℃ High and Low Temperature Test
IP40 Protection Test

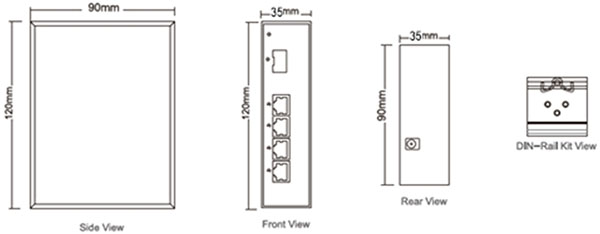

Dimension
4014-size

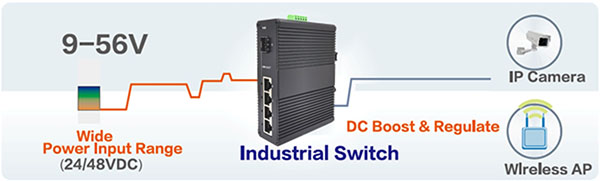

Application
4014-application

Ordering information

Model Number

Port Description

4014

Industrial Ethernet Switch,4x10/100M Base-TX+1x100M Base-FX SFP

4114

Industrial Ethernet Switch,4x10/100/1000M Base-TX+1x1000M Base-FX SFP
