#4005

5 port industrial ethernet switch model No. 4005/4105

Description of goods
5 port 10/100M industrial ethernet switch model No. 4005

Applications
4005 is a new generation Ethernet Industrial Switch with 4-Port 10/100Base-TX and 1x10/100Base uplink RJ45 ports (Data) that provide stable and reliable Ethernet transmission offered by GWT, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users The Ethernet Industrial Switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

4005 can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75℃.Housed in rugged DIN rail or wall mountable lP40 enclosures. these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (lTS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications

Features
*4x10/100Base-TX, 1x10/100Base uplink RJ45 ports
*Support Auto-MDIX, and full/half duplex self-negotiation mode
*Support 2048bytes giant frame, compatible with various extension protocol
*4K MAC address table
*Support IEEE802.3az energy efficient Ethernet technology
*Support IPv6 Protocol
*Electric 4KV surge protection, easy to use in outdoor environment
*Complete status indicator, working state at a glance
*Power input polarity protection design, no worry about wrong operation
*Metal case, no fan design
*Installation method: DIN rail /Wall mounting

Specifications

Physical Port
RJ45 Port and Speed	4x10/100Base-TX
RJ45 Port and Speed	1x10/100Base uplink RJ45 ports
Parameters
Ethernet Standards	IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3az IEEE802.1X
Packet Buffer	512K
MaximumPacket Length	Up to 2048Bytes
MAC Address Table	4K
Transmission Mode	Store and Forward(full/half duplex mode)
Exchange Property	Delay time:<7us Backplane bandwidth:1Gbps;Packet forwardingrate:02976Mpps

LED Indicator
Power	Connect-always
RJ45	Link/Act:connect-always;data exchange-twinkle
Fiber	Link/Act:connect-always;data exchange-twinkle
Power Information
Power Access Mode	Phoenix terminal,DC seat
Redundant Power Input	DC 9-56V
Overload Protection	Yes
Power Reverse	Support
Power Consumption	Full-load<5W
Physical Property
Protection Grade	IP40 aluminum case
Cooling Mode	Natural cooling, no fan design
Dimensions	120mmx90mmx35mm(LxWxH)
Installation Mode	DIN rail/wall-mountable
Weight	300g
Working Environment
Operating Temperature	-40℃~75℃
Operating Humidity	5%~90% non-condensing
Storage Temperature	-40℃~85℃
Warranty
MTBF	500,000 hours
Defects Liability Period	3 years warranty, lifetime technical support
Certification Standard
EMC	FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2(ESD),EN61000-4-3(RS) EN61000-4-4(EFT),EN61000-4-5(Surge) EN61000-4-6(CS),EN61000-4-8 EN61000-4-11
Vibration	IEC60068-2-6 -40~75℃ High and Low Temperature Test IP40 Protection Test

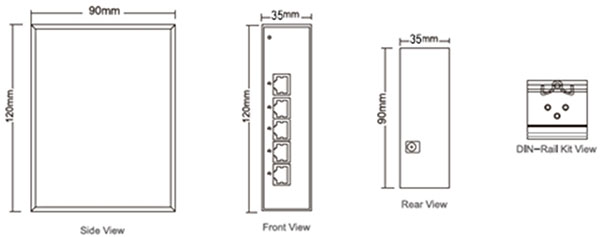

Dimension
4005-size

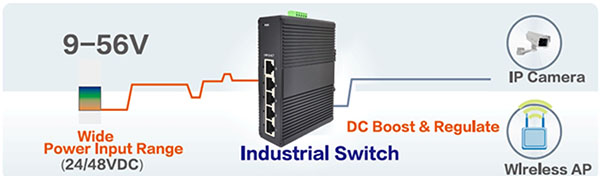

Application
4005-application

Ordering information

Model Number	Port Description
4005	Industrial Ethernet Switch,5x10/100M Base-TX
4105	Industrial Ethernet Switch,5x10/100/1000M Base-TX
